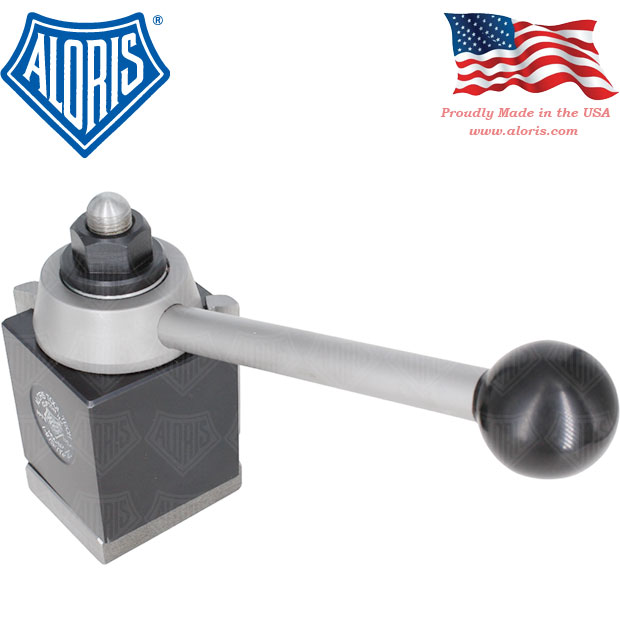

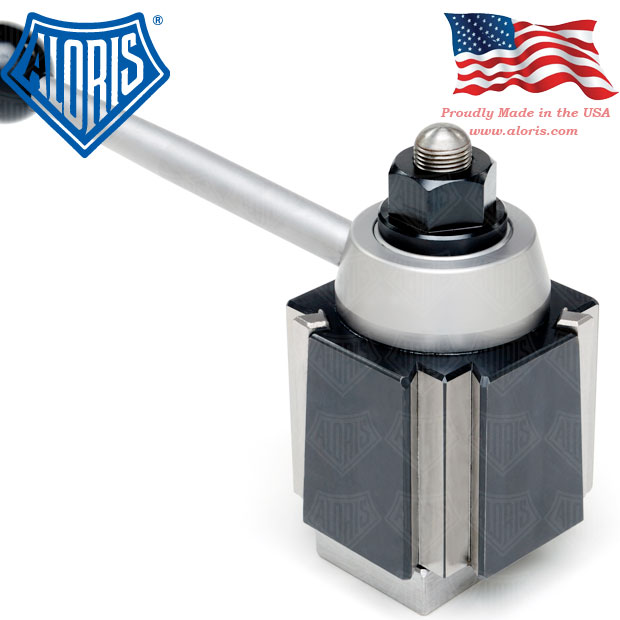

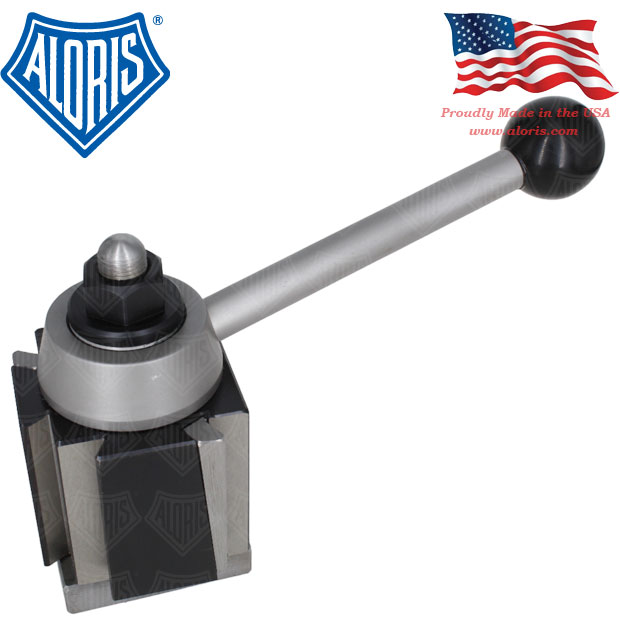

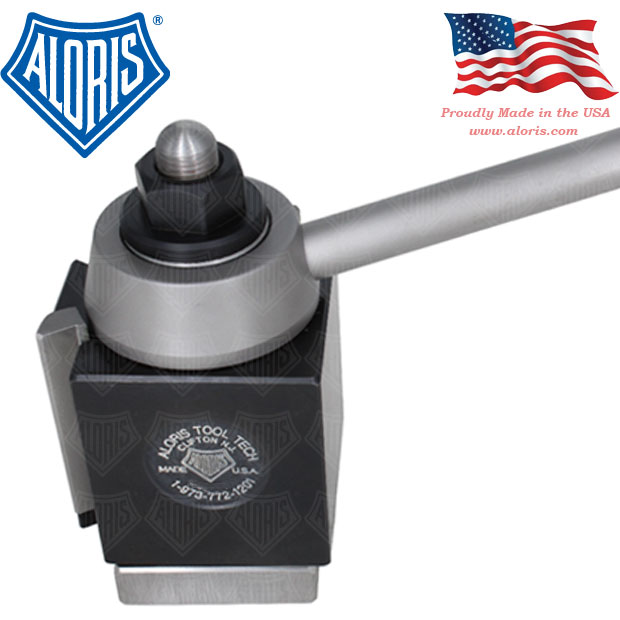

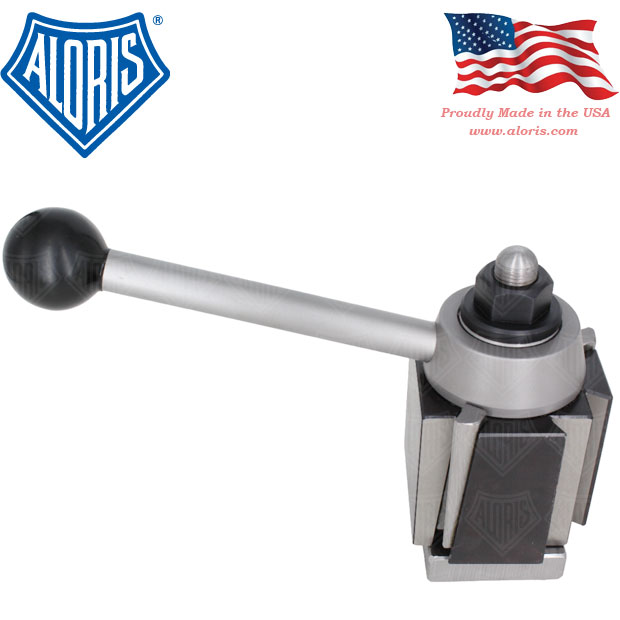

Super-Precision Tool Post DA

Precision engineered to assure repetitive accuracy. Advanced design provides built-in quick tool changing versatility with positive rigidity to meet the most exacting working tolerances. Quickly and easily installed on any engine lathe, bench or CNC lathe, for a wide range of operations — from fine precision work to heavy duty cutting.

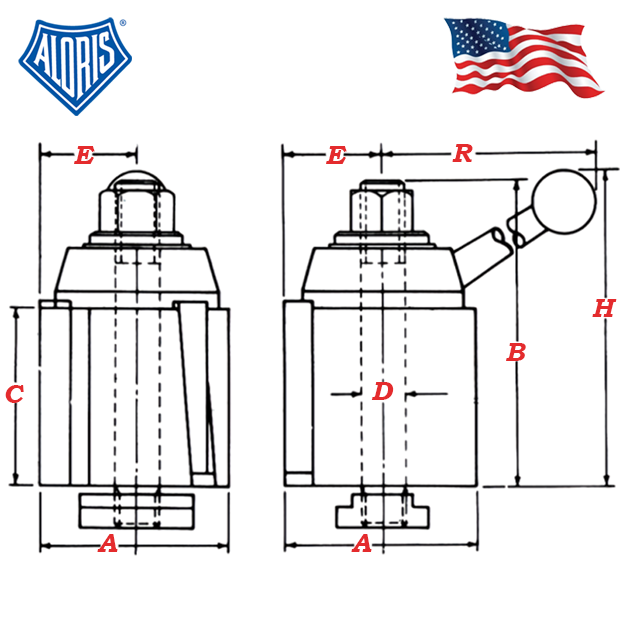

Dimensions (see diagram image) A: 5″; B: 7⁵/₈“; C: 4⁵/₈“; D: 1”; E: 2¹¹/₁₆“; H: 8³/₄“; R: 10⁷/₈“; Swing up to 17-48”

Aloris can machine the T-Nut at no charge at the time of purchase if the dimensions are provided. If the T-Nut exceeds the standard size (1″ thick and 3″ wide), an additional fee will be charged, please contact office for pricing.

T-NUT ORDERING INFORMATION VIDEO

T-NUT DIMENSIONS SHEET – PLEASE COMPLETE AND INCLUDE AT THE TIME OF PLACING YOUR ORDER.

** OTHERWISE THE T-NUT WILL SHIP BLANK **

*IF T-NUT EXCEEDS OUR STANDARD DIMENSIONS PLEASE CONTACT OUR OFFICE.
