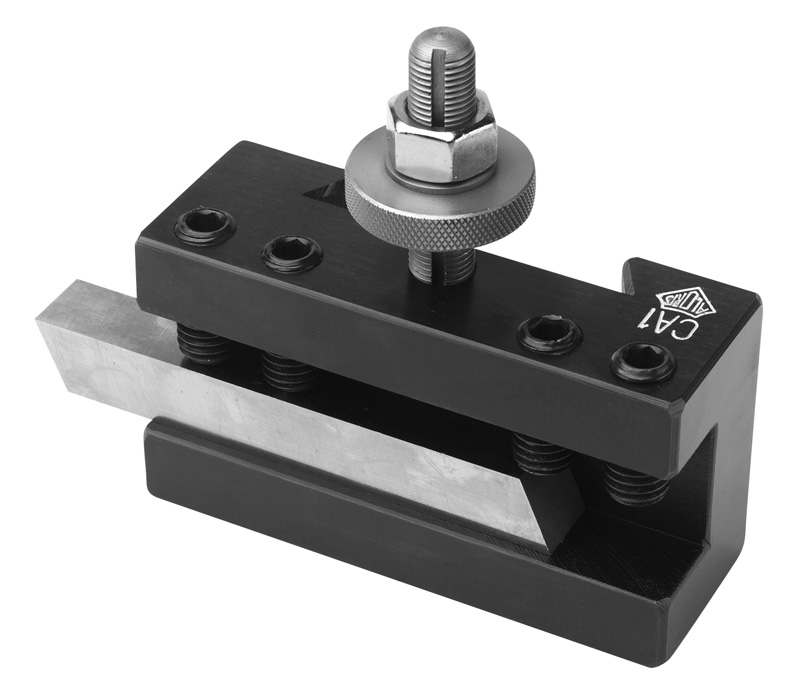

Qualified Turning Holder CA-1Q

A full range of qualified tooling to meet the rigorous repeat accuracy demands of C.N.C. Lathe operation, combined with the advantages and convenience of quick-change versatility, high-precision and superb workmanship – time and job proven qualities which have made Aloris products the tools preferred by lathe craftsmen for over 40 years. The Aloris Q System provides simplicity in set-up, programming and operation of C.N.C. lathes. The point of origin (grid line), custom located for your particular lathe, is a fixed reference for setting up all tools used in the system. The Aloris Q System can also be used on conventional lathes, with superior results.

Aloris Qualified Tool Holders are designed for use with all manually or C.N.C. Lathes. All are available in CA __ Q and DA __ Q sizes. They feature parallel and square working surfaces to assure automatic resumption of the preset qualified working position every time the holder is locked into place.

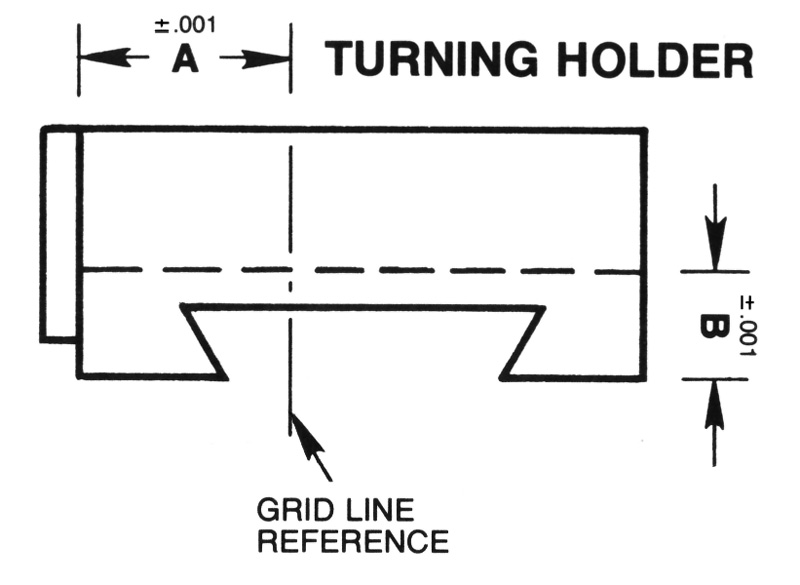

Dimensions (see image) A: 1.46″; B: .915″; Capacity: 1″

Replacement Height Adjustment Assembly: CA-HA
