Aloris Products, Mini Swivel Cartridge Tool Holders

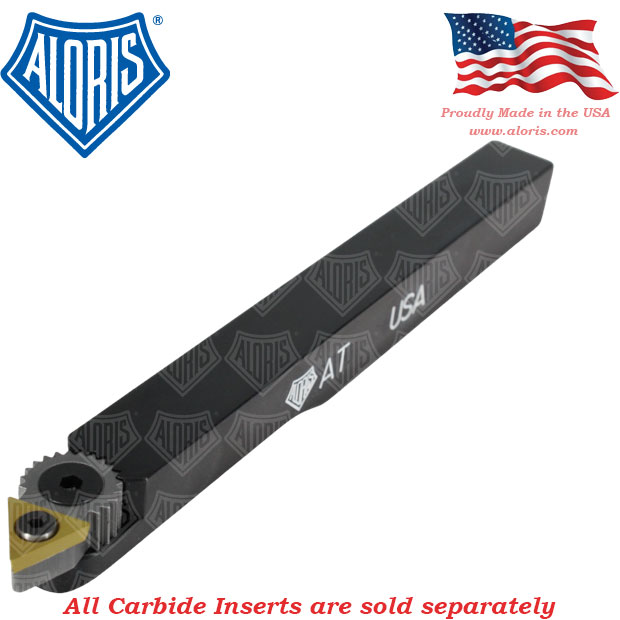

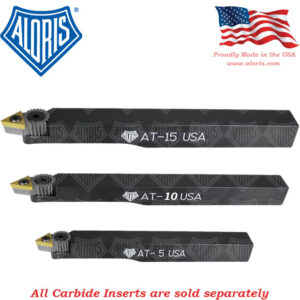

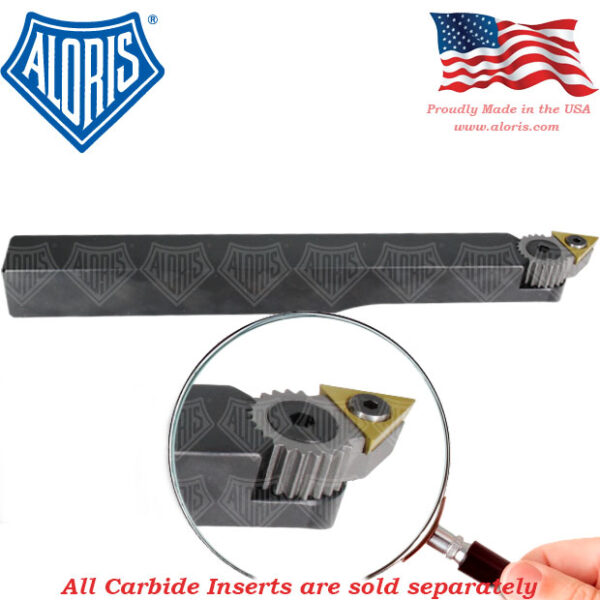

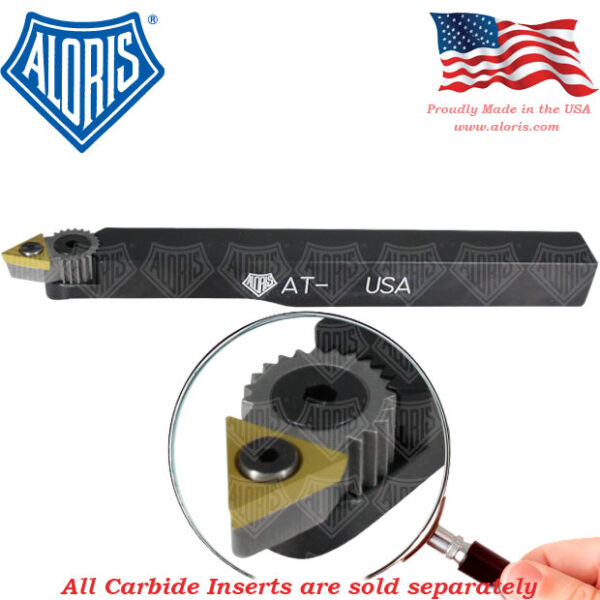

Long Mini Swivel-Cartridge Tool Holder AT-5
Availability:
500 in stock
$71.37
500 in stock
CompareFor left or right hand turning, boring, facing and chamfering. Tool holder can be used with cartridge or high-speed steel swivel head. Indexing of every 15° permits many angular turning and boring operations. Adjustment is made by just one turn of the lock screw, and selecting desired setting — 12 positive lock positions. The cartridge accommodates triangular carbide insert with “0” rake allowing internal and external threading. The high-speed steel swivel head has 60° included angle and can be ground to various job requirements.
Designed for mounting in boring bars, such as Aloris BB___ series for angular boring and threading.
Shank size: 3/8” x 3/8” x 4″
Minimum Bore Diameter: 3/4“
Replacement Parts:
High Speed Swivel Head: CRT-5H
Swivel Clamp Screw: LS-5C
Carbide Insert Swivel Head: CRT-5
Insert Clamp Screw: LS-2L
High Speed Swivel Head: CRT-5H
Swivel Clamp Screw: LS-5C
Carbide Insert Swivel Head: CRT-5
Insert Clamp Screw: LS-2L
