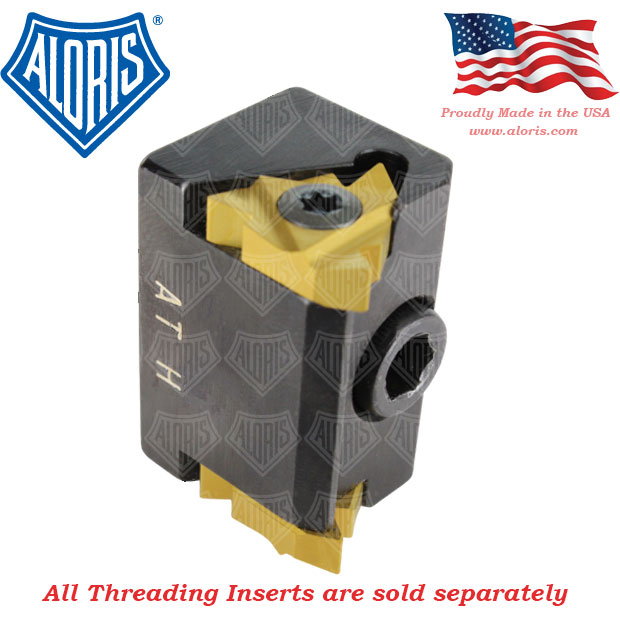

Laydown Insert Cartridge AT-1H

Aloris Series H Threading Cartridge for two triangular 60° threading inserts

Dimensions (see image) A: ³/₄” square; B: 1¹/₄“

Replacement Screw for “C”: ASA-3T
Replacement Screw for “D“: ⁵/₁₆“-24x³/₄” lg shcs
Insert IC: ³/₈“
Key: T10
Inserts: 16ER-LAG60-RH or 16ER-LAG60-LH (positive)

 Available too Laydown Insert Cartridge AT-2H.
