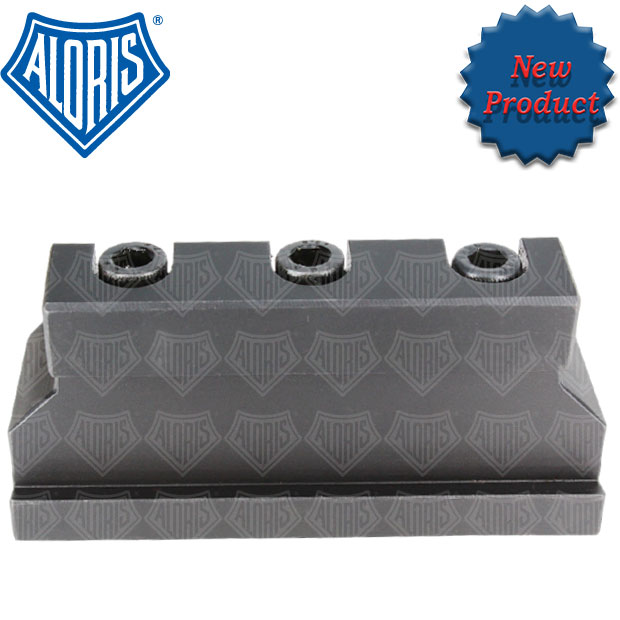

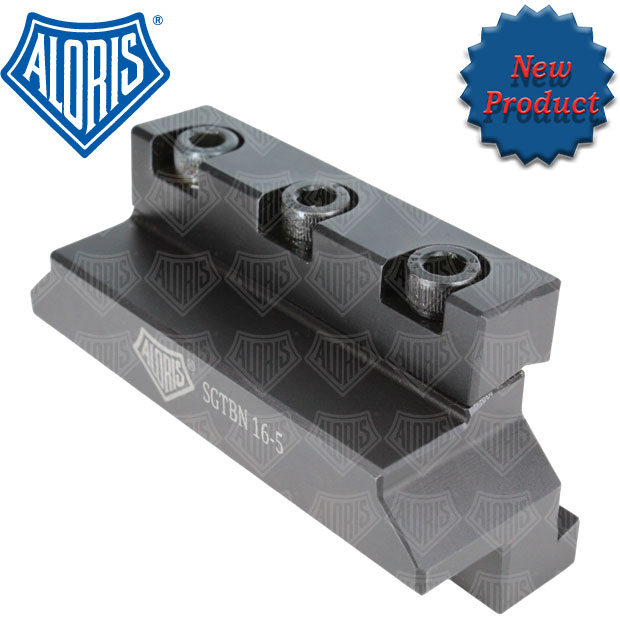

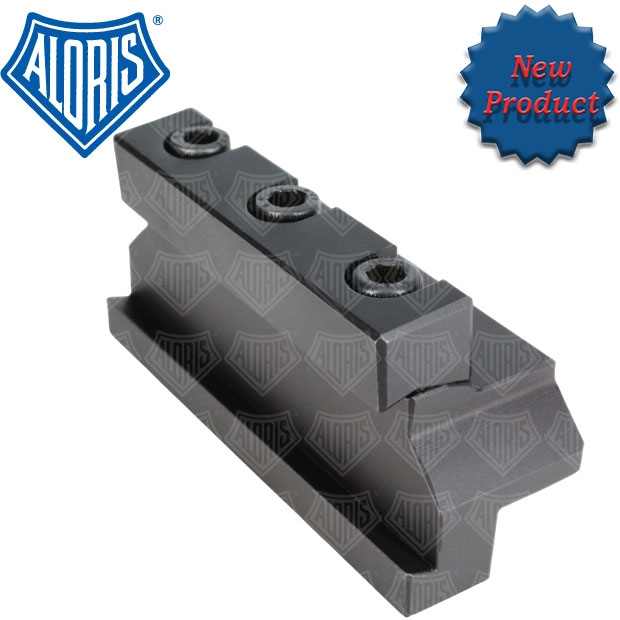

CNC Tool Block SGTBN 16-5

The SGTBN 16-5
Parting/Grooving Tool Blocks can be used in both CNC and Manual Lathes, Left or
Right Hand. It accepts the following Wedge Grip Blades and Inserts:

• SGIH 26-2 , Wedge Grip
  Cutoff/Grooving Blade and  GTN/L/R 2.4 (.093) Wide Wedge-Grip Inserts.
• SGIH
  26-3 , Wedge-Grip Cutoff/Grooving Blade and GTN/L/R .120  Wide Wedge-Grip
  Carbide Inserts.
• SGIH 26-4 Wedge-Grip
  Cutoff/Grooving Blade and GTN/L/R 4 (.160) Wide Wedge-Grip Carbide Inserts.

                                                                                                                                                                                                                                                                                        The
Blades and Inserts are interchangeable with all major Manufacturers. Always
adjust the blade to be as stubby as possible to assure efficient cutting
without chatter or vibration.

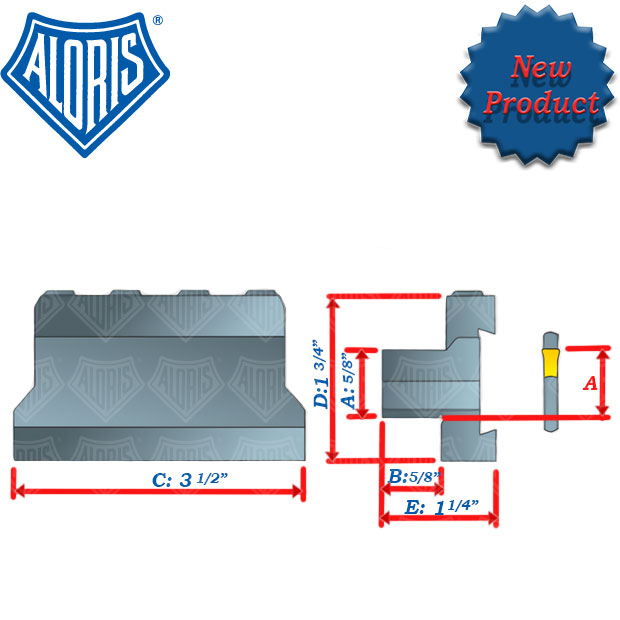

Dimensions (see image):
A: ⁵/₈“; B: ⁵/₈“; C: 3¹/₂“; D: 1³/₄“; E: 1¹/₄“
