Aloris Series ASIH Chamfering, Facing & Turning Holder ASIH-5

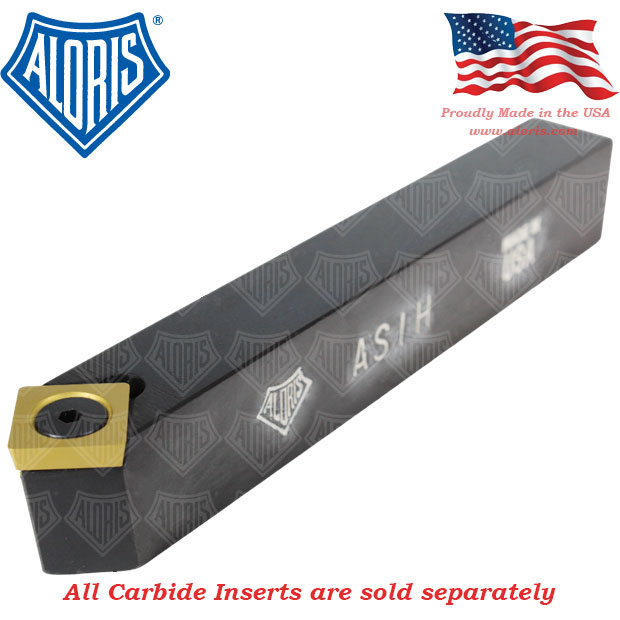

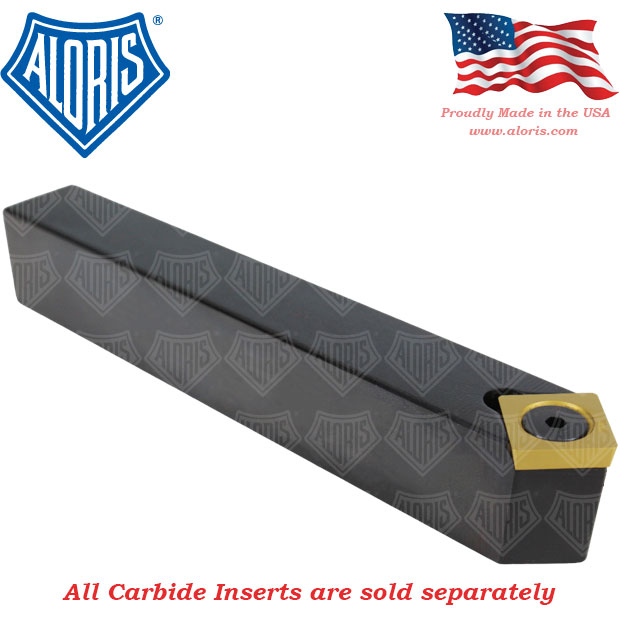

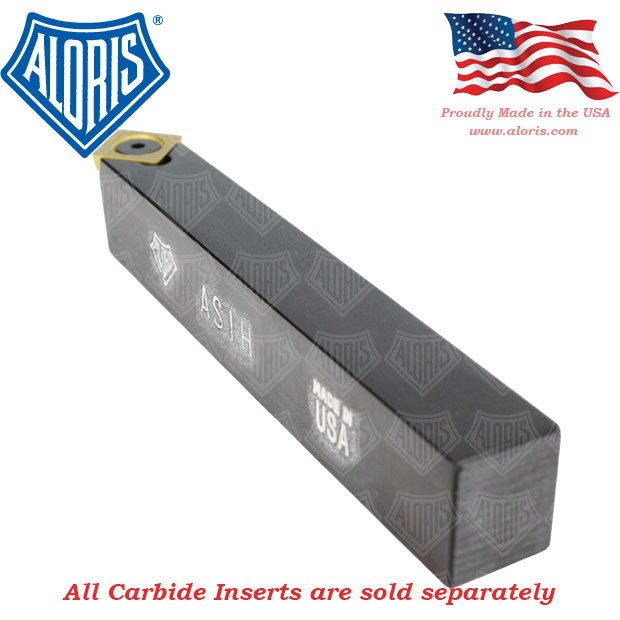

Aloris ASIH Series universal holders accommodate standard square carbide inserts and are designed for chamfering, facing and turning operations. ASIH Series holders are available in four shank sizes and are designed for use in Aloris #1, #2 and #13 quick-change dovetail tool holders or any square shank holder.

Aloris ASIH Series holders accommodate ¹/₂” I.C. and ³/₄” I.C. carbide inserts. An insert holding screw is provided.

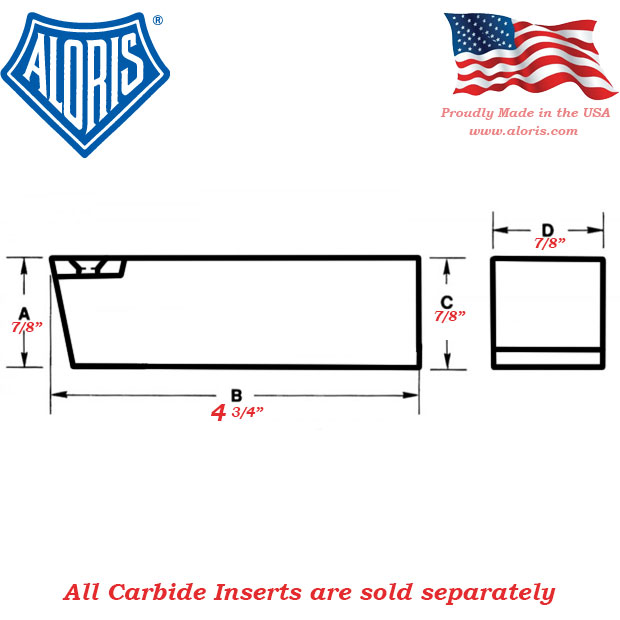

Dimensions (see image) A: ⁷/₈“; B: 4³/₄“; C: ⁷/₈“; D: ⁷/₈“

3/4″ Carbide Inserts

Replacement Parts:
Insert: ASD-12P
Screw: ASD-12PSCR (10-24 x 5/8)
