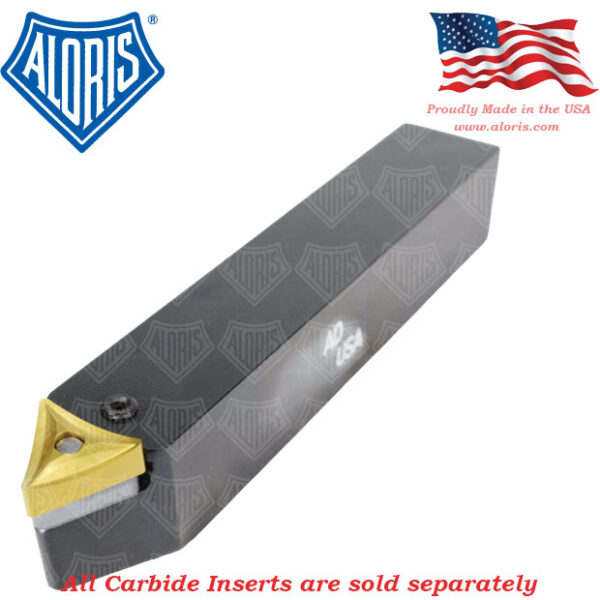

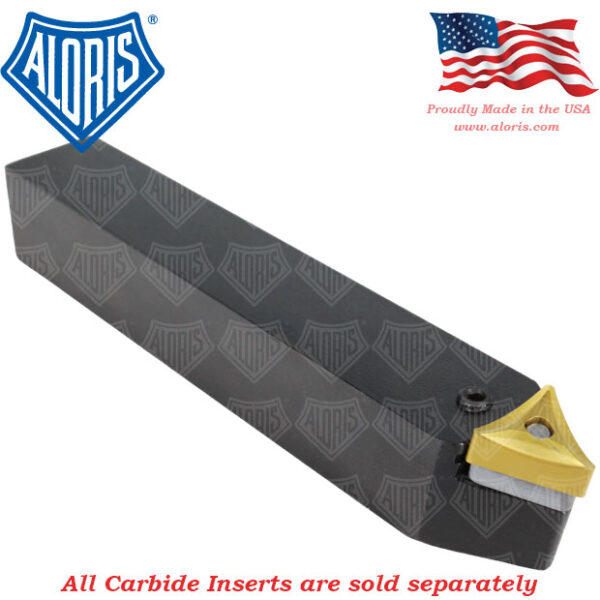

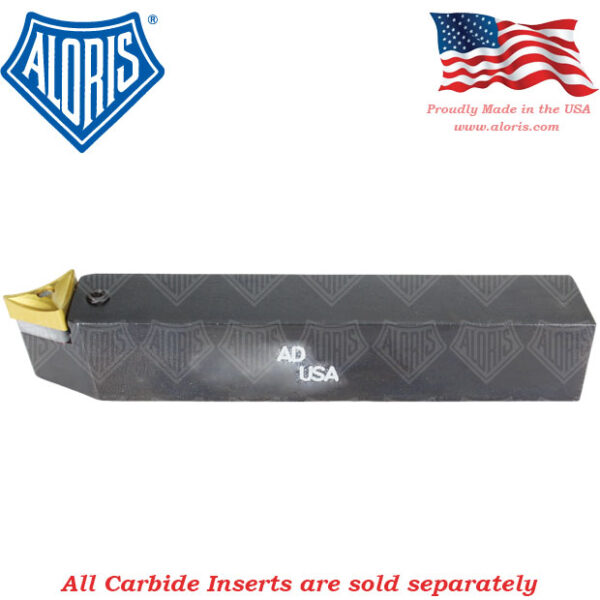

Aloris Double-Lock Tool Holder AD5-3

LEAD TIME 3-5 BUSINESS DAYS.

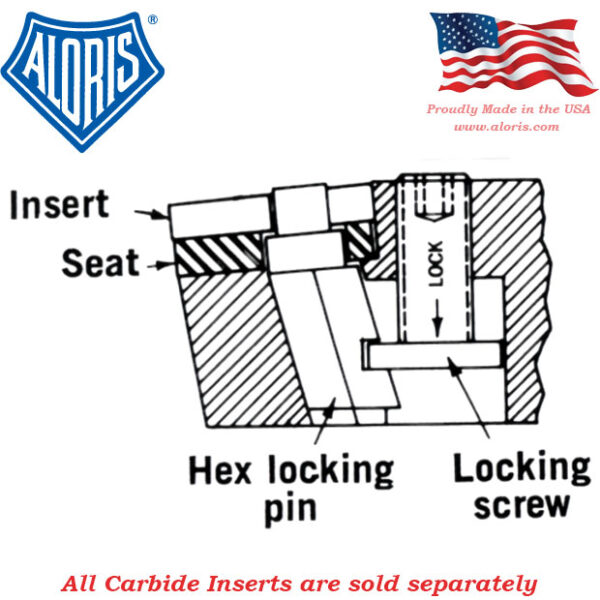

A unique locking device exerts a two-way force on the carbide insert: downward and tight against shoulder to assure rigid, positive seating. Designed to accept standard inserts. 30^o side cutting edge style. Also available in right and left hand versions.

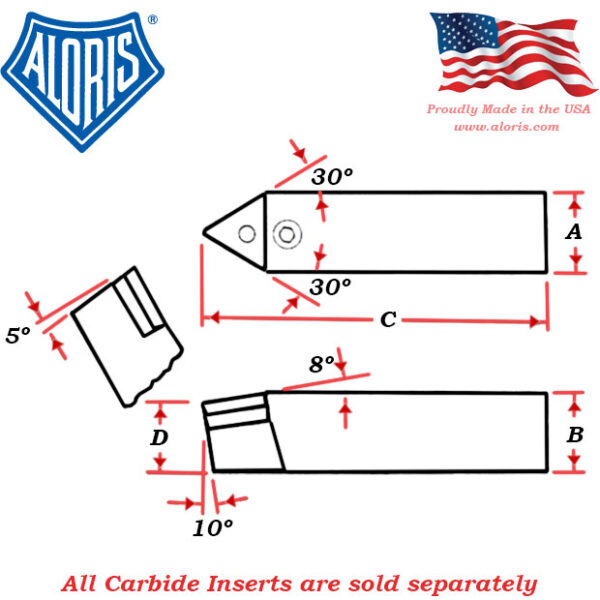

Dimensions (see image) A: ⁵/₈“; B: ⁵/₈“; C: 4¹/₂“; D: ⁹/₁₆“
Insert Size: I.C.: ³/₈“; thickness: ¹/₈“

Replacement Parts:
Carbide Seat ST-1
Hex Lock Pin LP-1
Lock Screw LS-1
