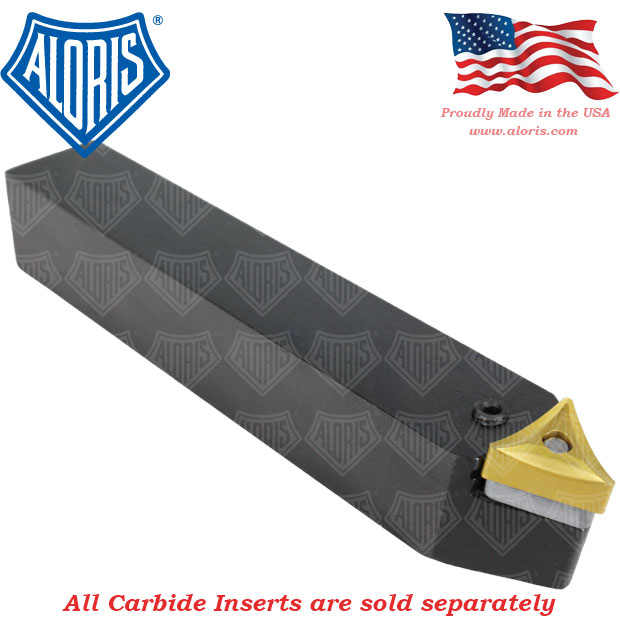

Aloris Double-Lock Tool Holder AD10-4

A unique locking device exerts a two-way force on the carbide insert: downward and tight against shoulder to assure rigid, positive seating. Designed to accept standard inserts. 30° side cutting edge style. Also available in right and left hand versions.

Dimensions (see image) A: 1“; B: 1¹/₄“; C: 6“; D: 1³/₁₆“
Insert Size: I.C.: ¹/₂“; thickness: ³/₁₆“

Replacement Parts:
Carbide Seat ST-2
Hex Lock Pin LP-2
Lock Screw LS-2
