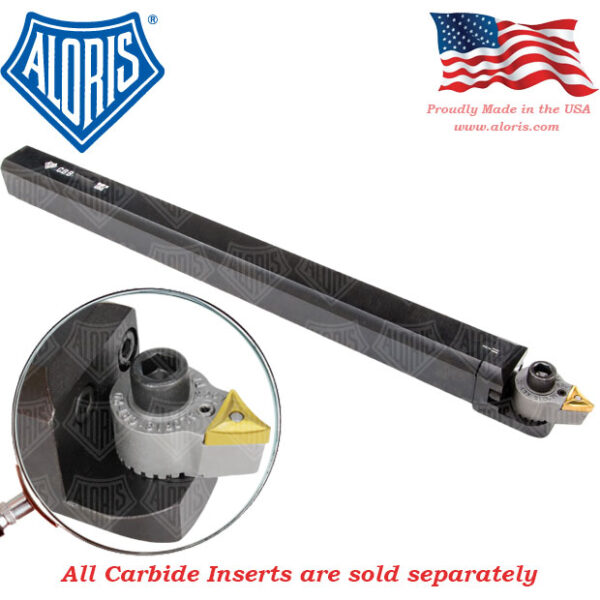

Aloris Cartridge-Head Boring Bar CBB6-30

For deep hole boring operations. The Aloris boring bar/cartridge combination is designed for maximum rigidity, will not permit tool deflection. All parts are heat treated for maximum strength. The cartridge, with its 12 indexing positions at 15° intervals, provides for many angular boring operations. The two-way adjustable rake provides 5° cutting angle with positive stop. Adjustment is made by loosening cradle lock screws and selecting desired setting.

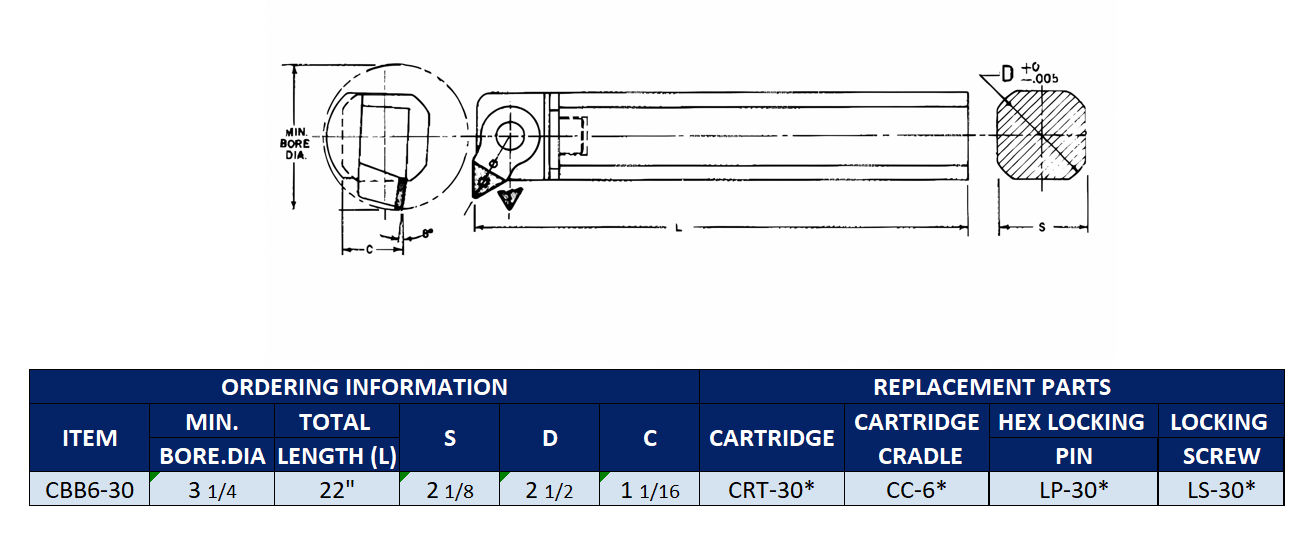

Dimensions (see image) Total length (L): 22″; S: 2¹/₈“; D: 2¹/₂“; C: 1¹/₁₆“; minimum bore diameter: 3¹/₄“

Replacement Parts:
Cartridge: CRT-30
Cartridge Cradle: CC-6
Hex Locking Pin: LP-30
Locking Screw: LS-30
