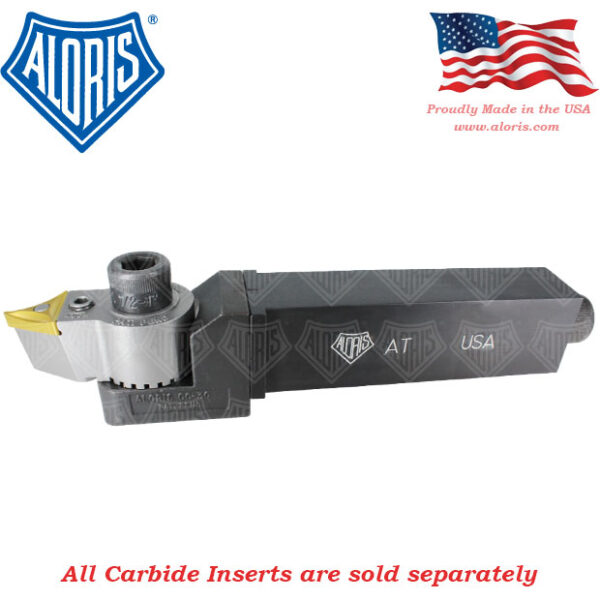

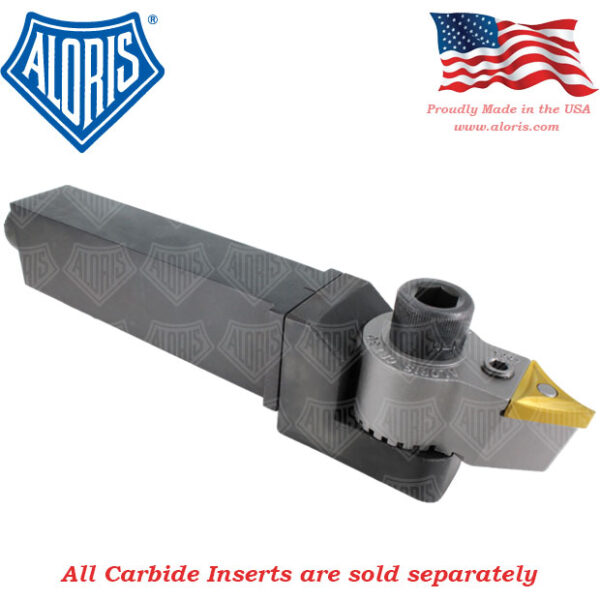

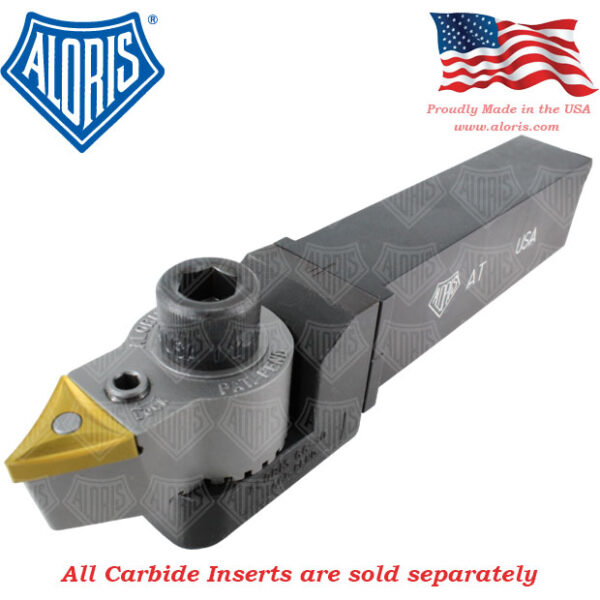

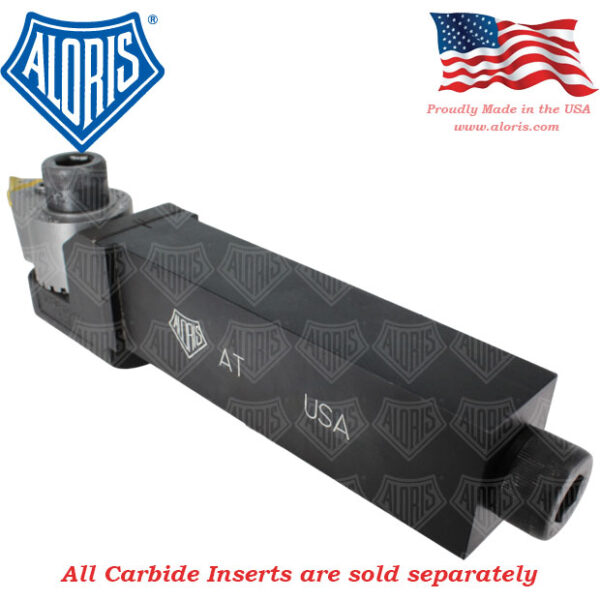

Aloris Adjustable-Shank Tool Holder AT-40

The adjustable shank feature introduces added flexibility — turning the shank 90° permits choice of shank and cutting tool alignment. The cartridge, with its 12 indexing positions at 15° intervals, provides for many angular turning operations. The two-way adjustable rake provides for right or left hand turning, facing and chamfering. Rake has 5° cutting angle with positive stop. Adjustment is made by loosening cradle lock screw and selecting desired setting.

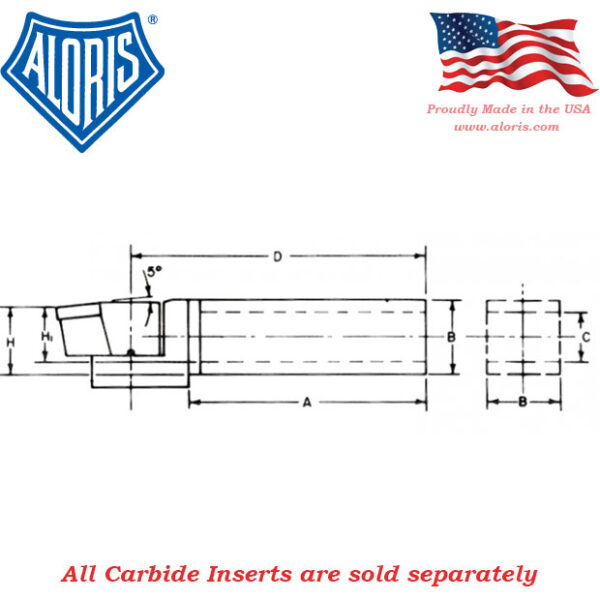

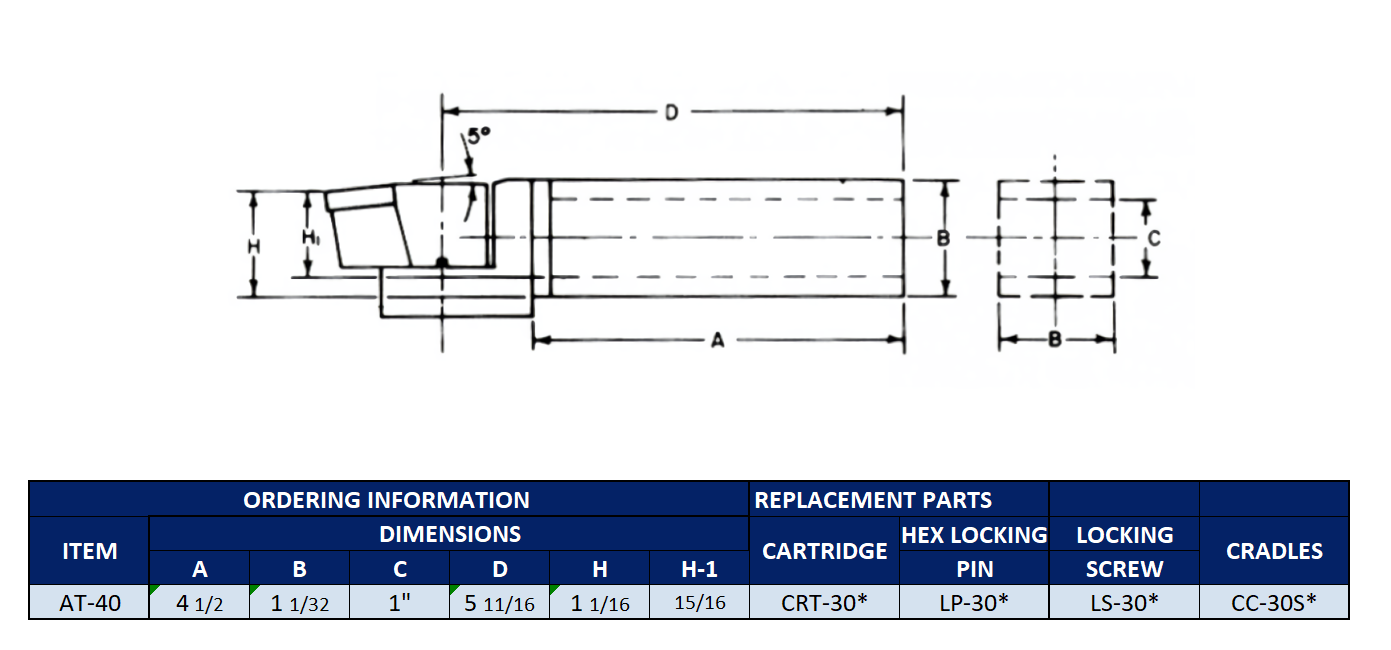

Dimensions (see image) A: 4¹/₂“; B: 1¹/₄“; C: 1”; D: 5¹¹/₁₆“; H: 1¹/₁₆“; H₁: ¹⁵/₁₆“

Replacement Parts:

Cartridge: CRT-30

Hex Locking Pin: LP-30

Locking Screw: LS-30

Cradle: CC-30S
