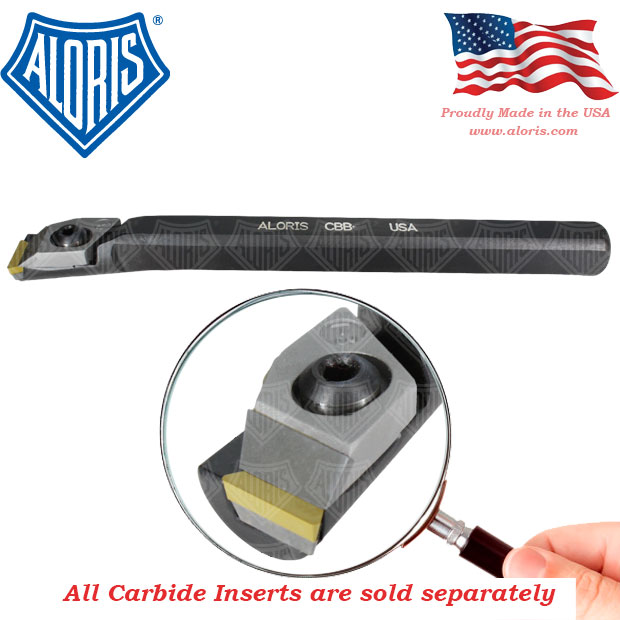

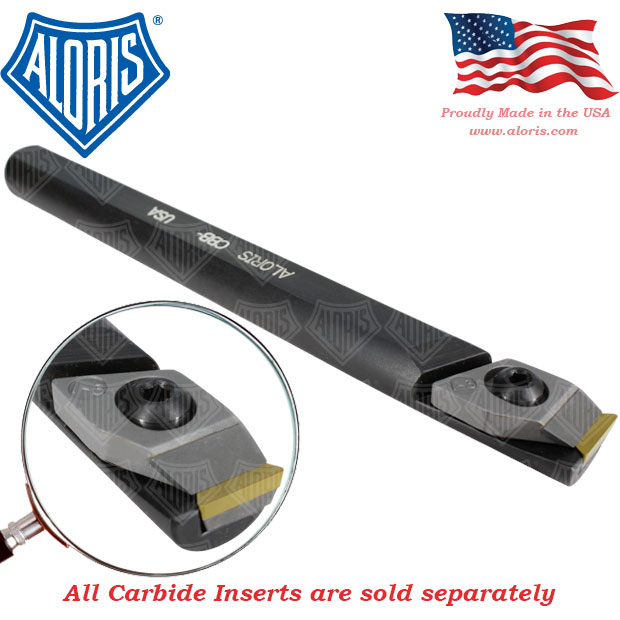

Aloris Adjustable Chipbreaker Boring Bar CBB-4

• Heat-treated alloy steel
• Supplied with adjustable carbide chip-breaker and carbide shim to protect the boring bar
• Accommodates standard positive rake triangular inserts
• Used for boring to square shoulder
• Can be used with open slot holders #1 and #2, as well as heavy duty holders #4, #41, #4D, #41D, #100, #104, #141

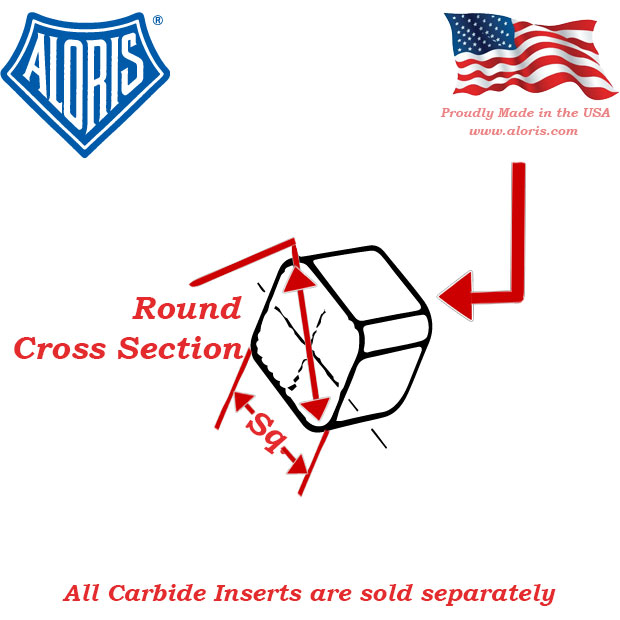

Boring Bar Size
Square: 1¹/4”
Round: 1¹/₂”
Length: 16″

Minimum Bore Diameter: 1⁵/8”

Insert Size
I.C.: ¹/₂“; thickness: ³/₁₆”

Replacement Parts:
Adjustable Chipbreaker: CB-46
Chipbreaker Clamp Screw: SCR-12
Carbide Shim: SM-37
Carbide Shim Screw: SM-37SS
